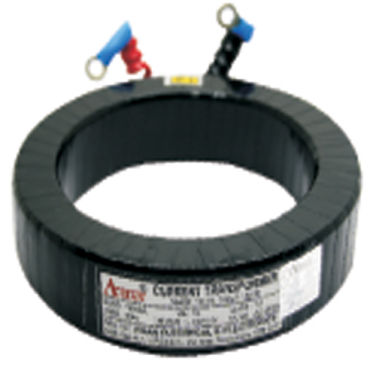

30-300mA Current Balance Current Transformer

. All Current ratios available to match
. Commonly available ELR’s
. Slim Design
. Light weight
. Encapsulated CBCT
. Terminals are finger proof touch as
per IEC class
. Highly Cost effective
. Compact in Size

System Voltage : 720 V maximum
Insulation voltage : 3kV for 1 minute
System Frequency : 50Hz or 60Hz
Max. Permissible Current : 1kA continues
5KA for 1.5 sec.
Terminal Conductor : 2.5 mm2
Current ratio : 1/1000, 1/600 any other on request
Distance Between Toroid and relay : 50 meters
Operation Temperature:- 200 C to 700C
Humidity: 95%RH (non condensing)
Enclosure: Flame retardant glass filled ABS
Complaint with : IEC 44-1 and IEC 185
Mounting : Four Fixing Slot
